HD 623

£0.00

Contact us for latest price


Price excluding VAT

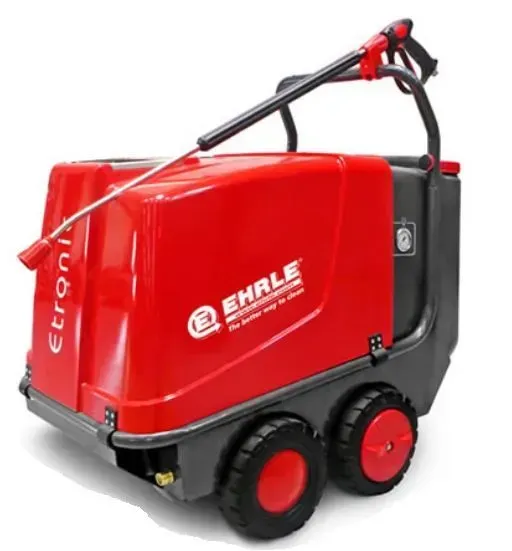

The Ehrle HD623 is a commercial portable hot pressure cleaner using diesel with adjustable flow and pressure it has been designed for continuous use.


Built on a four-wheeled metal chassis with braked wheels to meet latest plant legislation and includes impact-resistant ABS cover. Triplex piston pump with brass head, high performance ceramic pistons and stainless steel valves, the HD 623 is designed for longevity and reliability.


These operator friendly machines have start-stop system with switch-off delay and total switch off after 20 mins as an additional safety precaution. The HD623 has a robust rotary on/off switch, accessory storage space, 25ltr fuel and 20 ltr detergent tank, 7.5m mains cable and supplied with a 10m high-pressure hose, trigger gun with swivel, 90cm spray lance, stainless steel jet nozzle, 15 litre cleaning-detergent tank.


The detergent supply has a high pressure injector and metering valve


Premium version has a 20m high pressure hose reel and dirt blaster lance.

Add to Cart

  • SPECIFICATIONS

    Operating Pressure

    30 - 135 bar

    Water Output

    300 - 600 litres per hour

    5 - 10 litres per minute

    Hot Water Tempature

    30-c - 98'c

    Pump speed

    1400 rpm

    Mains Connection

    ​240v @ 13amp

    Fuel Type

    ​Diesel

    Max inlet water temperature

    45 'c

    Size machine (l x w x h)

    107 x 74 x 102 cm

    Weight

    149 kg

    Warranty

    ​12 months

  • ACCESSORIES

    Standard

    • Etronic I - Controls
    • 10 m high pressure hose - DN08 - 315 bar
    • Trigger gun with swivel
    • Spray lance 900 mm c/w nozzle protection
    • Stainless steel jet nozzle 25°
    • Water-supply separation acc. water reg.
    • Chemical supply in high pressure jet c/w metering valve


    Premium

    • Etronic I - Controls
    • Hose reel
    • 20 m high pressure hose - DN08 - 315 bar
    • Trigger gun with swivel
    • Spray lance 900 mm c/w nozzle protection
    • Stainless steel jet nozzle 25°
    • Spray lance 900 mm c/w rotary nozzle
    • Water-supply separation acc. water reg.
    • Chemical supply in high pressure jet c/w metering valve



  • MORE DETAILS

    Features

    • Robust, corrosion-resistant, self-supporting device chassis
    • Impact-resistant device cover made of ABS
    • Triplex piston pump with brass pump head, nickel-plated, high-performance ceramic piston, stainless steel valves
    • Leakage return
    • Etronic I controls: Start-stop system with switch-off delay, total-switch-off after 20 min
    • 2-motors system (independent of the direction of rotation) separately for high pressure pump and heating
    • Unloader safety valve c/w infinitely variable pressure and quantity regulation
    • 4 large rubber wheels for rough terrain, with a patented wheel brake 2-way
    • Storage possibility for all accessories
    • Integrated Diesel tank 25 l
    • Integrated detergent tank 20 l
    • Rotary ON/OFF switch, robust and lockable
    • 7.5 m connection cable
    • Removable ergonomic drawbar
